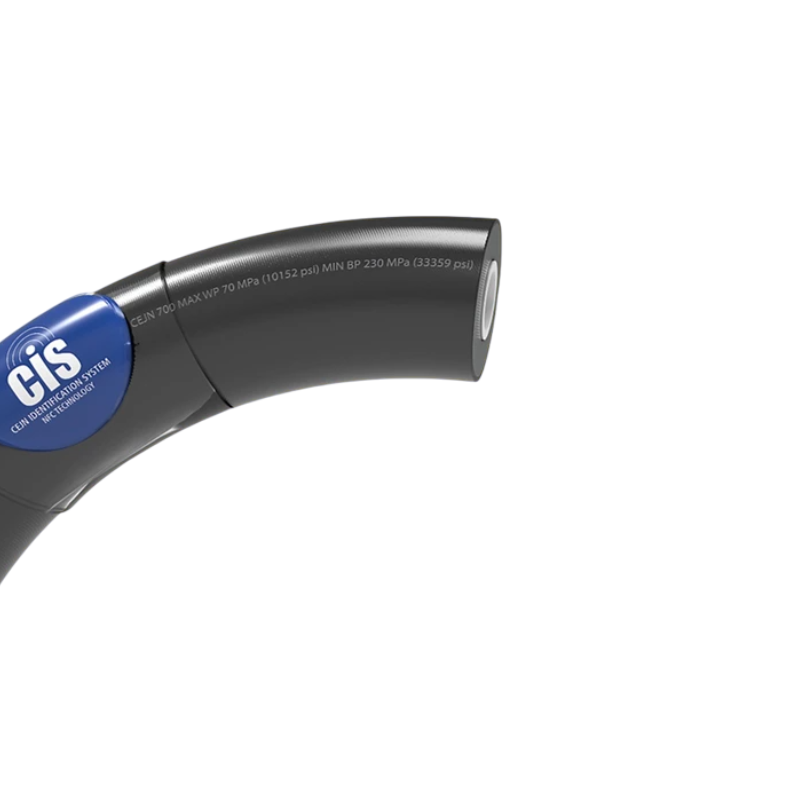

Hose Hydraulic/Selang Hidrolik 1.8m 700bar CEJN

Model : Hose Hydraulic 1.8m 700bar CEJN
– DesignInner tube of polymide (PA), 2 spiral layers of high tensile steel wire bonded with a special adhesive, outer sheath of thermoplastic polyurethane (PUR).
– Max. working pressure70 MPa
– Min. burst pressure175 MPa
– Min. bend radius70 mm (2.8″)
– Temperature range Hydraulic-10°C — +80°C (14°F — +176°F)

This CEJN high pressure hydraulic hose has a spiral steel reinforced, polymer construction, that picks up the requirement for a larger bore. The 2 spiral layers of high tensile steel make this an extremely safe hose. Together with the outstanding resistance to wear from the 2 additional open layers of steel wire minimising the spread of any tears in the polyurethane cover and giving stronger kink-resistance.
