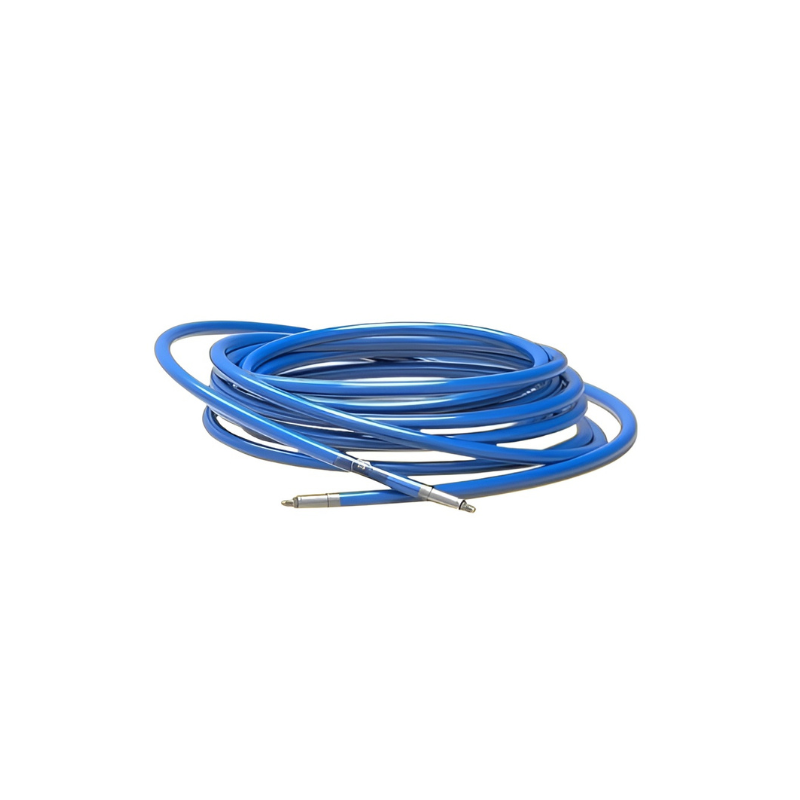

Hose Hydraulic/Selang Hidrolik 2m 1800bar CEJN

Model Number : Hose Hydraulic 2m 1800bar CEJN
ConnectionG : 1/4″ male CMS
Service length : 2m
Max working pressure : 1800 bar

Description180MPa, DN 5, blue hose kits
Special FeatureCiS safety tag
Max. working pressure180 MPa
Temperature range-40°C — +100°C (-40°F — +212°F)
Min. bend radius130 mm (5.1″)
ID x OD4.8 x 11.6 mm
Nominal flow diameter4.8 mm (0.2″)
Min. burst pressure450 MPa

CEJN’s 180MPa (26.1k psi) hose is the traditional choice for many tough and wearing jobs. Hose kits are available in lengths from 1.5 to 4m. Burst; 450MPa (2.5:1). Available with anti-scuff protection and CEJN’s Identification System tag (CiS) on the hoses, making working safe easy.
